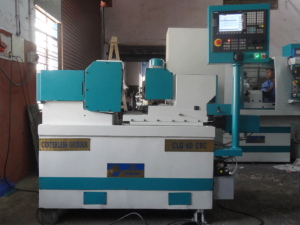

PRECISION CNC CENTRELESS GRINDING MACHINE MODEL “MICROTEK CG 60 CNC”
3

PRECISION CNC CENTRELESS GRINDING MACHINE MODEL “MICROTEK CG 60 CNC”

Designed for smaller diameter jobs.

              MACHINE FEATURES                                                              TECHNICAL  SPECIFICATIONS
MACHINE BED
Machine Bed with high grade Cast Iron with higher wall thickness, generously ribbed,

GRINDING WHEEL HEAD
Grinding Wheel Head is massive and fixed to bed, Cartridge Spindle supported by high precision preloaded angular contact bearings grease packed for life.

REGULATING WHEEL HEAD
The regulating Wheel Head supported on heavy housing and has easy access for angular adjustments. Cartridge Spindle supported by high precision pre-loaded angular contact bearings or Taper roller bearings, grease packed for life.

FEED SLIDE
The feed slide runs on antifriction M & V needle roller linear bearings grease packed for life. The slide is driven by Servomotor. The regulating wheel positioning slide is mounted on top of feed slide for manual positioning for various job sizes.

GRINDING WHEEL
The Truing device for grinding wheel is thru Y & Z axis and programmable for different profiles. The Truing device for grinding wheel is thru co ordinate axis. The wheel can be trued straight or any tapered profile.

REGULATING WHEEL
The Truing device of regulating wheel has a vertically adjustable diamond holder so that required hyperbolical shape of the wheel can be obtained. And the profile is generated through template.

COOLANT TANK
Coolant Tank with high pressure & flow pump and Magnetic separator.

LUBRICATION
Centralized lubrication unit for slides and Ball Screws

CNC SYSTEM
Siemens 808 D Package 3 axis  X, Y & Z.  Electrical Cabinet directly mounted on machine for space saving and easy maintenance and easy operation.
Grinding  dia Max. mm 60
  Min. mm 1.5

Infeed Grinding Max. Length mm 95

Through-feed grinding without feeding device Max. length   mm 220

Vertical adjustment of work rest blade   mm 25

Regulating wheel head size   mm 250x127x100
Recess size   mm 2x190x12

Grinding wheel size   mm 350x127x100

Grinding Wheel Speed New rpm 1910
  Worn-out rpm 2220

Regulating Wheel Speed with step less drive   rpm 20-350

Working stroke of feed slide (approx.)   mm 110

Regulating Wheel head adjustment towards work rest blades   mm 70

Swivel of Regulating Wheel Head
For Taper Grinding   Deg +4 / -2
For Through feed Grinding   Deg +4 / -2

Minimum resolution for infeed slide   mm 0.001
Least count on MPG   mm 0.001

Grinding Wheel Motor   kw 7.5


Manufactured By:

M/S Microtek Grinding Machines Pvt. Ltd.

SB- 57, 2nd cross,1st Stage, Peenya Industrial Estate, Peenya, Bangalore- 560 058

 Ph: 28393371/72    E-mail: microtekltd@yahoo.com/ microtekltd@gmail.com

Website: www.microtekgrinding .com
